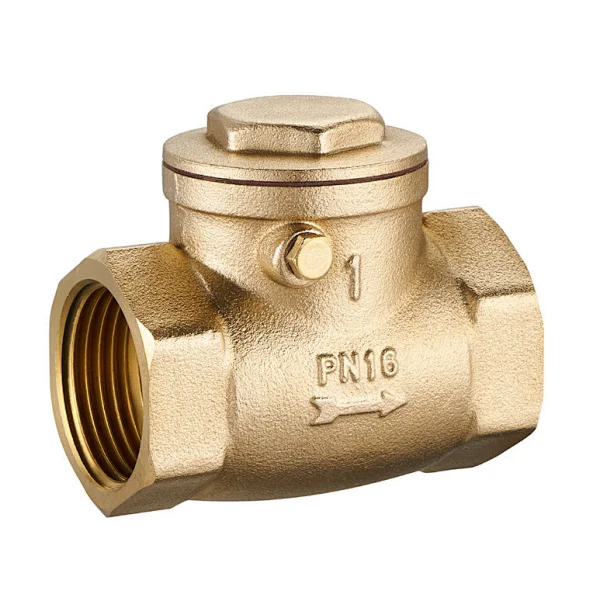

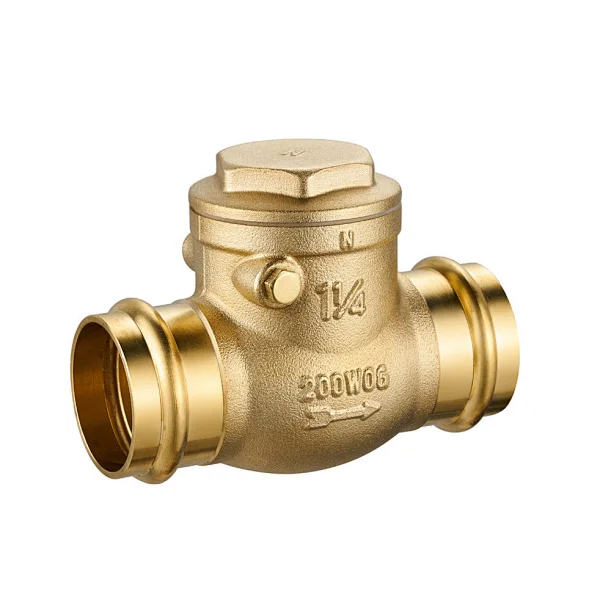

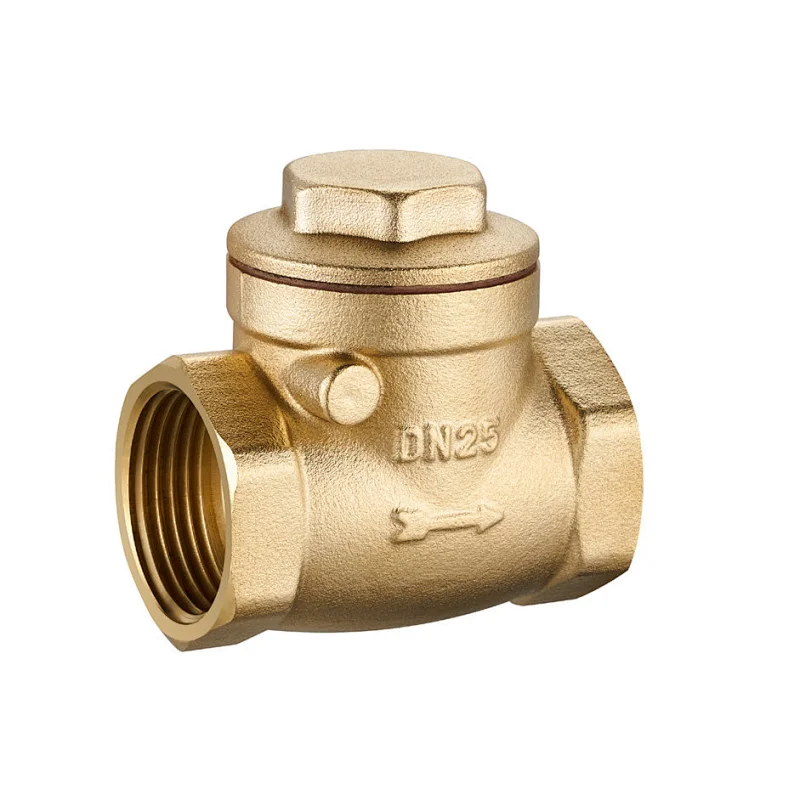

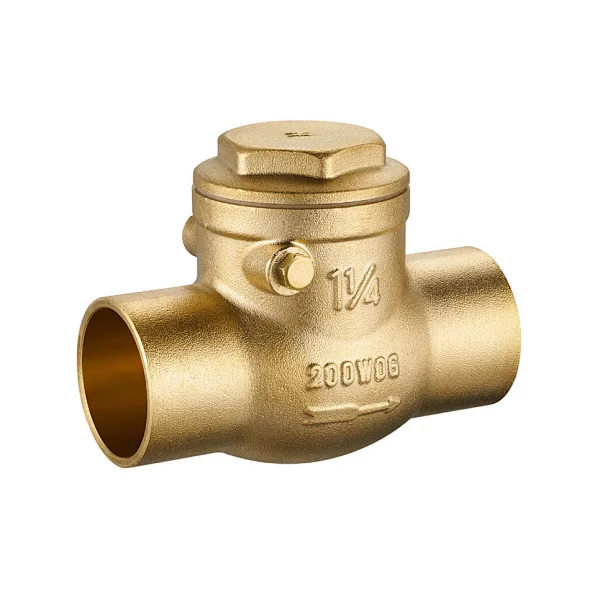

Swing Check Valve
Swing Check Valve
Swing Check Valve

Swing Check Valve

Model NO.: F501
Forging Brass Body; Rubber Seal or Metal Seal Available;Fiber Gasket;
Maximum Working Temperature:80 centigrade degree;
Maximum Working Pressure Rate:PN16 bar;
Thread :ISO228 / ASME B1.20.1
This valve is ideal for all types of plants: hydraulic, pneumatic and heating plants. It is suitable to install in horizontal, vertical or oblique position.
